Système de surveillance de bord de véhicule

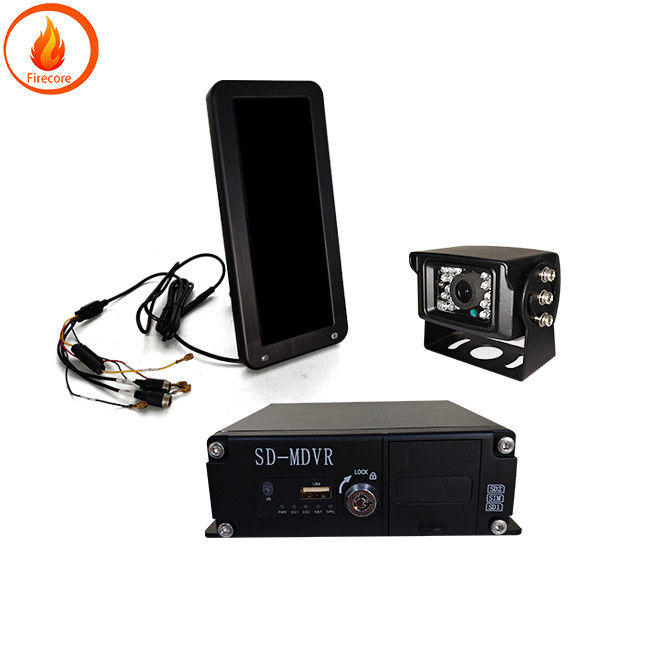

Système de surveillance par caméra du véhicule Système de surveillance à bord d'un écran 12,3 pouces

Paramètres du produit:
Affichage:
1. Taille: 12. 3 " ((8 : 3)
Résolution: 1920 * 720P
3) Rétrécissement: luminosité LED: 850 cd / m2
Contraste: 800: 1.
5, portée de vue: 85 degrés vers le haut, 85 degrés vers le bas.
6, alimentation électrique: DC9 - 36V
7. Contrôle du DSO: réglages de lecture vidéo réglages d' affichage vidéo réglages de langue réglages inversés réglages système
8, puissance 5W
9. Entrée de signal: 720P / 960P / 1080P / CVBS entrée mixte
Format de fichier: AVI / JPG
11. Mémoire: prend en charge la carte TF 256GB
Compression vidéo: H.264
Résolution d' enregistrement: 720P/960P/1080P/CVBS
14. Langues du système: chinois anglais
15. Écran d' affichage : écran simple / double écran / 5 : 5 / 6 : 4 / 7 : 3 Opération d' affichage simultané CHI CH2 1080P
16. Contrôle du déclencheur: déclencheur à sens unique.
Format vidéo: commutation automatique PAL/NTSC
Une caméra HD:
Résolution: AHD 720P / 960P/1080P
L'angle large horizontal est de 90 à 150
Niveau d'étanchéité: IP68

Nous sommes un fabricant professionnel de recherche et développement de la production et de la surveillance des véhicules

Enregistreur vidéo de voiture caméra de voiture caméra usb voiture affichage usb caméra

Veuillez nous contacter par e-mail:Je vous en prie.

Terminal de surveillance à distance monté sur le véhicule
The vehicle mounted remote monitoring terminal  also known as the vehicle mounted DVR   adopts a professional vehicle mounted design that is suitable for automotive power supply and adopts high seismic resistance design   It combines mechanical shock absorption   electronic shock absorption   and software seismic resistance patents   and uses a removable ordinary 2.5 - inch hard drive    It has multiple modes of security monitoring and recording functions   manual   timed   alarm linkage    and fast and convenient query and playback modes  The product has a high - speed USB 2.0 interface and broadband network interface   which facilitates data backup   The vehicle mounted intelligent terminal can be used independently   and can also utilize the extended built - in GPS global positioning system and 3G communication module to construct a wireless video monitoring management system for remote scheduling management and real - time monitoring   As an extended application   in car DVR can also provide functions such as mileage and station name prompts   enriching operational applications   Mileage and station name prompts   in addition to the sound station announcement function   the onboard terminal also provides visual mileage and station name prompts  displaying the progress of the vehicle on the route through the display inside the vehicle   The main functions and architecture of the software platform   The onboard monitoring terminal can independently complete the video recording and recording monitoring function on the vehicle, and can also be expanded and configured into a system with wireless network monitoring and management   improving and enhancing the regulatory ability of the management department on vehicles   and providing more timely monitoring of key areas and routes

The line resembling the head penetrates into the car through the gap of the license plate light   and is connected to the power supply and video extension cable of the reversing light   This type of installation of reversing camera is a popular one nowadays   with a more concealed appearance and easier installation  Another method is to drill holes for installation and embed them into the interior of the bumper   The advantage of this method is that there is no need to drill holes on the metal parts behind the car   Because the bumper is made of plastic   the camera wiring is relatively easy    The third step is to connect the power cord of the camera to the power cord of the rear reversing light    then connect the video cord of the camera to the video extension cable    The other end of the video extension cable is connected to the AV input of the car DVD display    Finally   restore the battery power    start the car    engage reverse gear   and you can see the reverse image on the car display
